CS 101   Web Construction,  Winter 2012  Instructor:  Jeffrey Horn ASSIGNMENTS

• Assignment 6  "Survey Forms"
  • Handed out:    Monday, April 2, 2012
  • Due:     TBA (2012)
  •
  • Goals:
  • Learn how to work with a realistic server-side script by implementing a medium-size survey form.
  • Learn to be the interface between user and (script) programmer.
  • Learn how to use external style sheets
  • Learn to use form grouping elements <legend> and <fieldset>
  • DETAILS:
  • Overall:  Create a web page with a survey that uses two forms:  one form conducts a poll (i.e., survey) that you create and the other form conducts a particular poll we have created (8 questions) .  Test your survey forms to make sure they work with the scripts, then upload your survey page to a web server and ask users to take the quiz.   Send me the URL.
  • The value of the "action" attribute for both of your "<form>" elements should be "http://www.ballot-box.net/service3/poll.vote.php"
  • Named data fields:   You will need to follow these rules carefully and completely!
  • For the CLASS POLL (poll ID:  26651):
    1. In your form you will need a FIXED data field (i.e., make it  "type='hidden' ").   It needs to have name="pollid" and value="26651".
    2. There are four questions in the survey and hence you will need four data fields for them, to be complete.   The following images show how the survey results are printed.   They are in order.   The name for each data field is of the form "answer[#][]", where the '#' is the number of the question.   Thus the names go "answer[1][]" for question 1, "answer[2][]" for question 2, etc.   For the values of the questions (i.e., the value of the "value" attribute), these are simply the numerals 1,2,3, ...   So for example the value for answer choice 1, of question 1, is "1".
    3. You will also, of course, need a submit button!  (<input type="submit">)

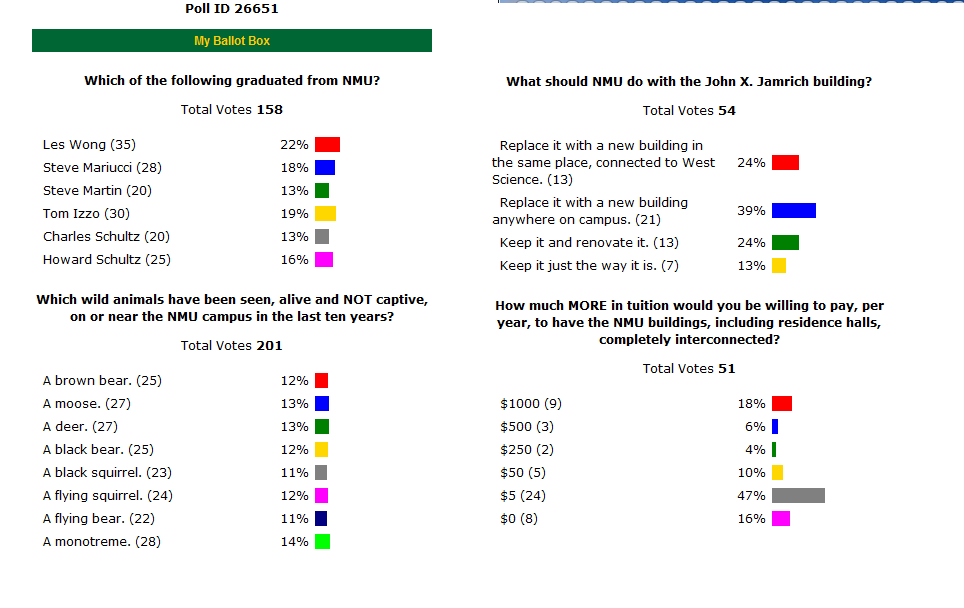

    4. Here is a an example of the report with survey results that is generated by the server-side script.   The wording of your questions and answers do not have to be EXACTLY the same, but if they are too different, users who take the survey might complain that what the answered is not what was compiled into the survey results!
  • For your INDIVIDUAL POLL (poll ID:  whatever, you must get this from the ballot-box.net site)
  1. Create your own poll on ballot-box.net with four questions.
  2. At least one question must use mutual exclusion.
  3. At least one question must use check boxes (i.e., not mutual exclusion).
  • Use the <link> element to link to the external style sheet at http://cs.nmu.edu/~jeffhorn/css/forms.css.   You will know that this is working when you see your form style change as viewed in a browser!
  • Use <fieldset> and <legend> elements to group the questions from the two forms into two separate, labeled sections of your survey page.
  • Upload your survey form to the web and test it.  Then send me the URL.  (jhorn@nmu.edu)
